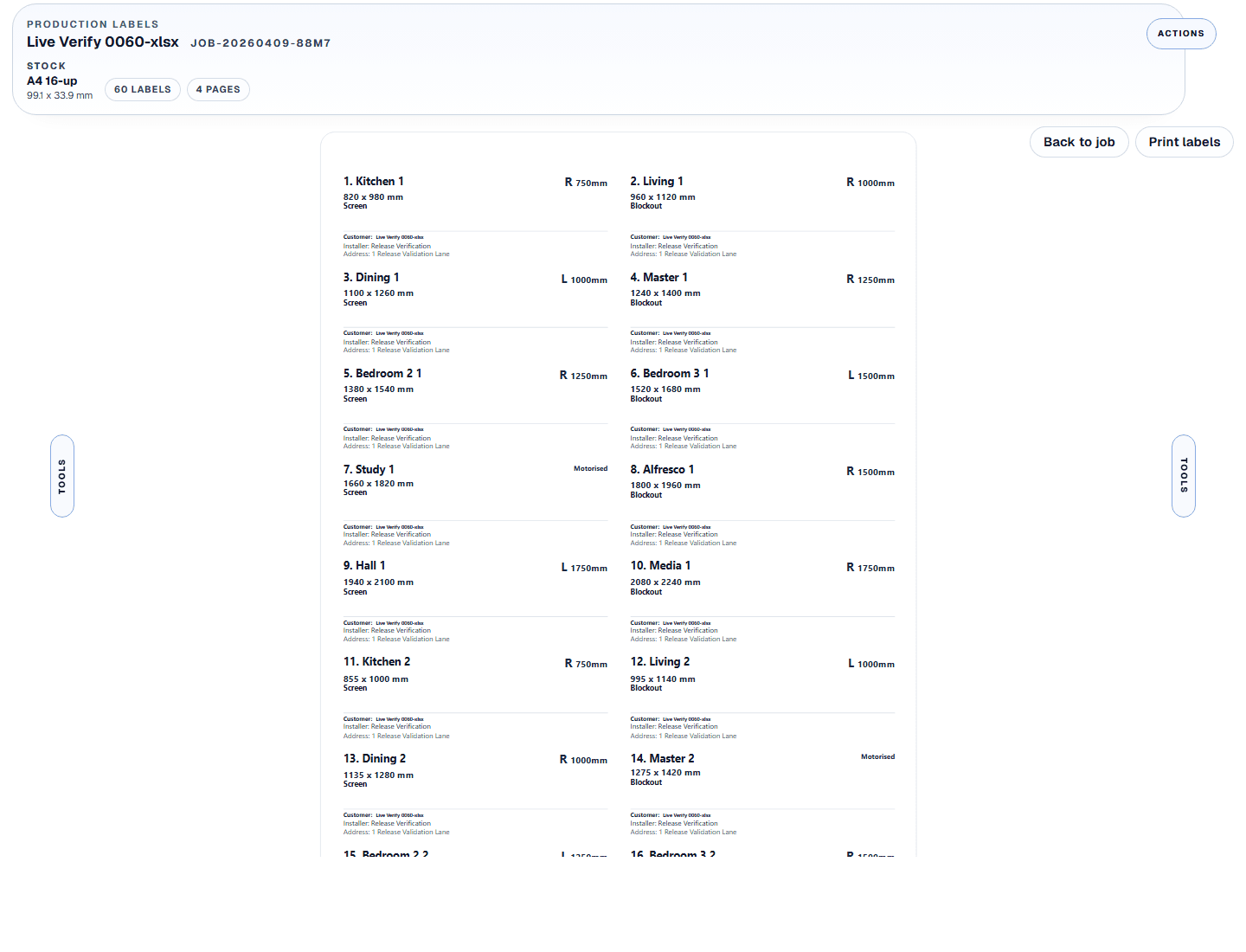

Print labels from the job workflow before moving into the production tools.
Labels should keep the paperwork deck visible so the operator can print without losing the job context.
Overview
Open full size for readable detail
Detail views
Expected result
The operator can print labels from the same job workflow without hunting for actions.
Last verified 2026-04-10
Use the production sheet as the printable summary and the checkpoint before nesting.
The production sheet is the shared checkpoint before the operator prints, nests, or makes layout changes.
Overview
Open full size for readable detail
Detail views
Expected result
The team can review the job summary and confirm the job state before downstream actions.
Last verified 2026-04-10

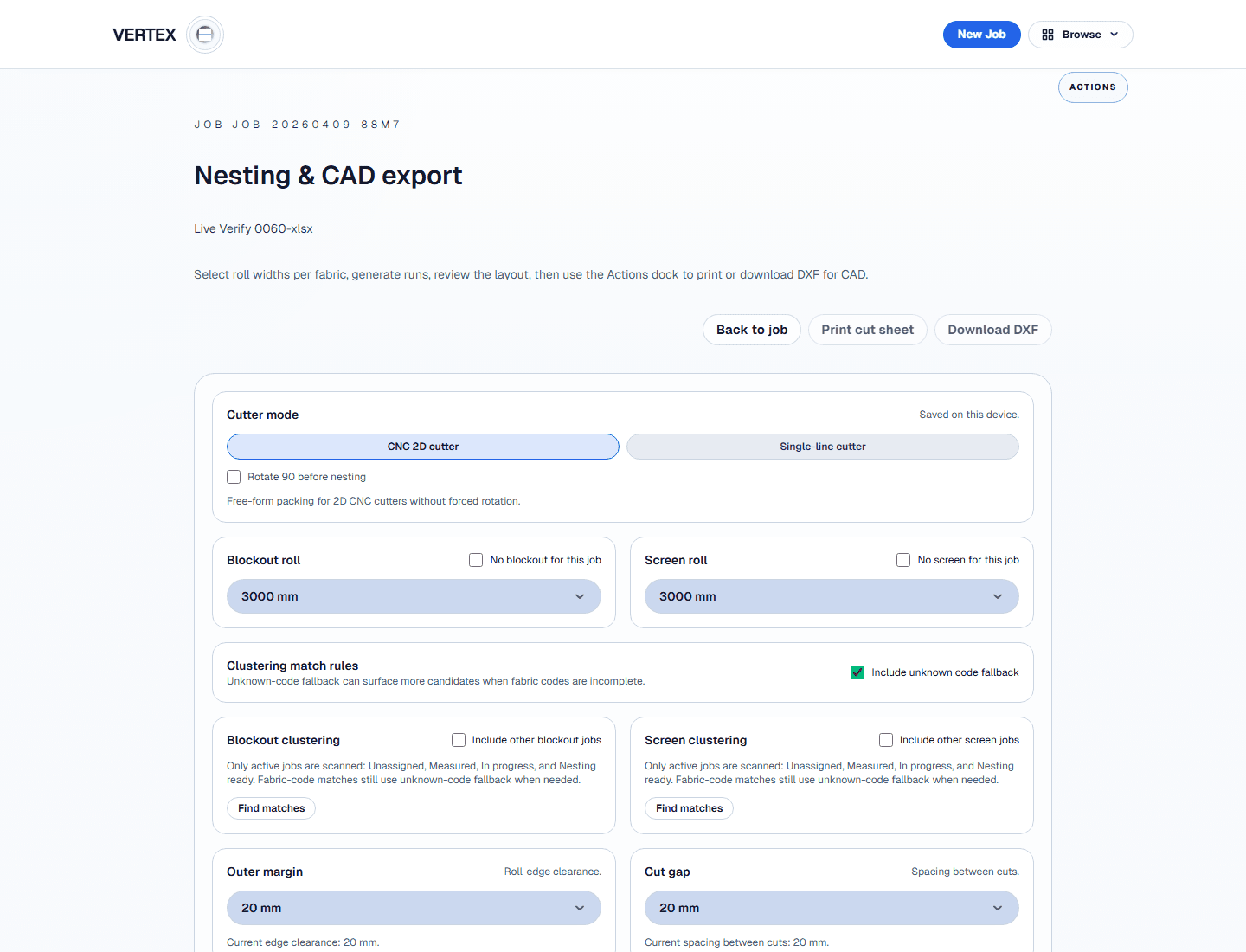

Keep Back to job and the export deck visible while generating the fabric layout.
Choose cutter mode and roll widths before generating the layout. Maximum panel length is a physical limit including the top and bottom margins; for example, a 2000 mm panel with 20 mm margins has 1960 mm of usable length. Oversized cuts are reported as skipped so you can adjust the panel size or allowed rotation. Use continuous roll only when no panel length limit is needed. Regenerate older saved layouts before printing or exporting. Use the cut-sheet action for the fabric plan. For panel or cut labels, select the label stock and check its preview; the same stock is used for printing. If the details do not fit readably, choose a larger label stock before printing. Match the printer paper size and use actual size (100%) so labels retain their intended dimensions.
Overview
Open full size for readable detail
Detail views
Expected result
The operator can generate the layout and export the cut sheet or DXF without leaving the job.
Last verified 2026-04-10

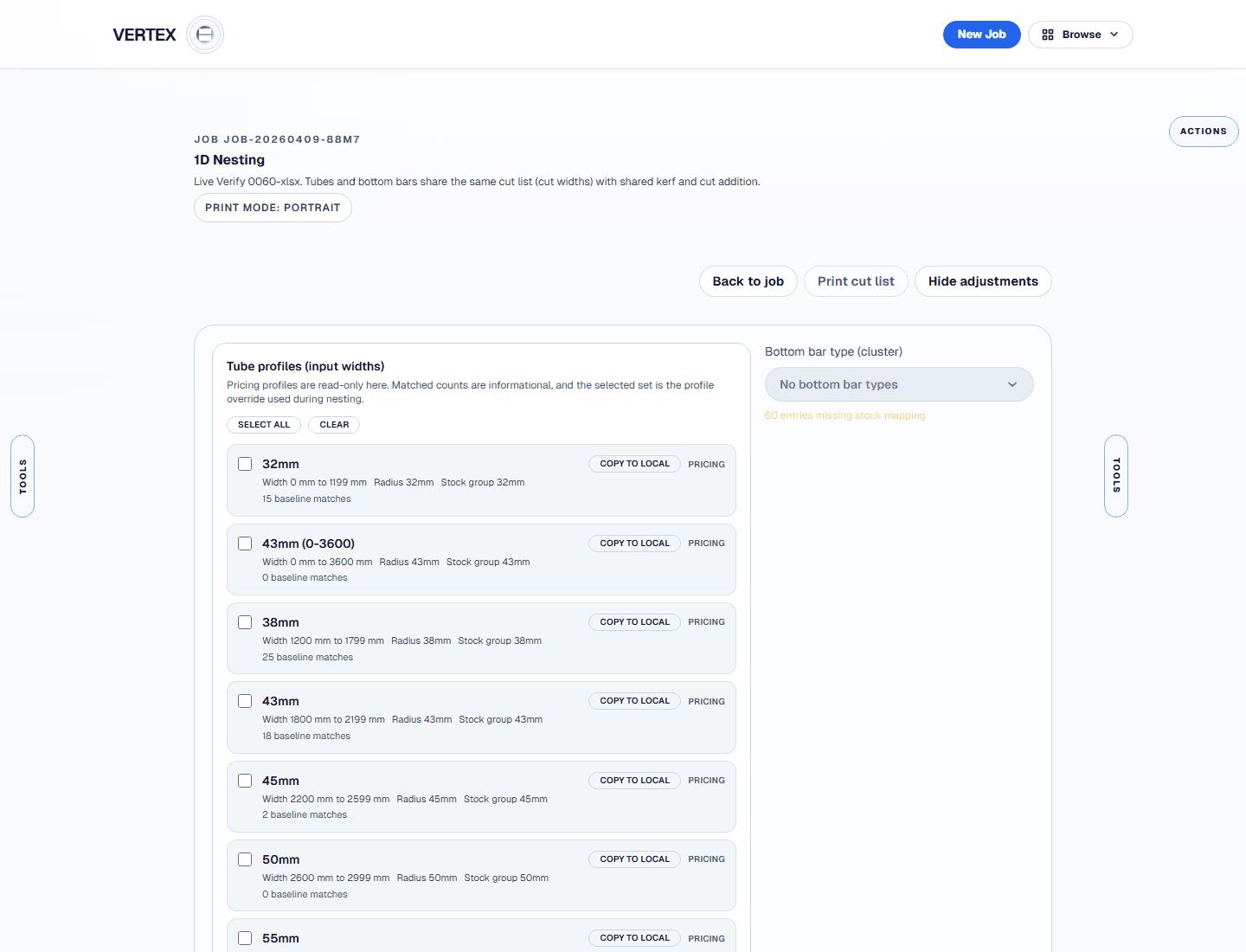

Use the linear nesting tools deck for tube and bottom-bar runs.
Generate the linear cut list, then choose portrait or landscape in the print tools. Use the zoom buttons to inspect the diagram; the mouse wheel scrolls the results. Long cut lists continue onto additional pages. In print preview, check the last cut and offcut rows before printing.
Overview
Open full size for readable detail
Detail views
Expected result
The operator can print the 1D layout from the same nesting surface.
Last verified 2026-04-10
Confirm committed totals and saved pricing before production paperwork is printed.
The quote surface is the commercial checkpoint that confirms the committed pricing source before production paperwork is printed.
Overview
Open full size for readable detail
Detail views
Expected result
Quote totals match the committed private pricing source before work moves downstream.
Last verified 2026-04-10
